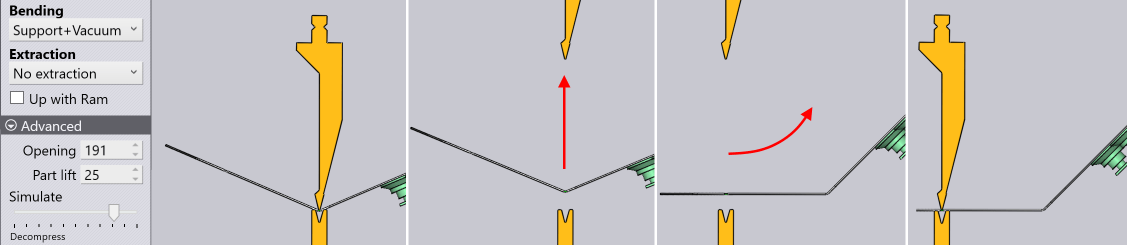

The No extraction strategy means that the part is not actually extracted out of the beam and then brought back into position for the next bend. Instead, the part directly proceeds to the next bend with just a pitch rotation to align it for bending. It can be used only when the two bends are adjacent bends on the same side of the part (no part turn required).
Note: This strategy can also be combined with the Up with Ram setting.

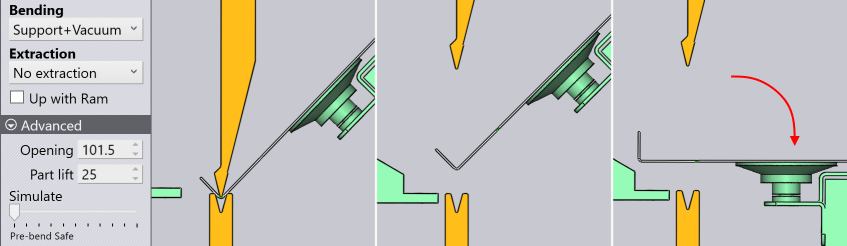

Below is another example of the no-extraction strategy. In this example, the part is moving backwards between bend 1 and bend 2.Â
